Power Lipo Battery 906090 3.7v 6000mAh 22.2wh Rechargeable Lithium Ion Polymer Battery For Smart Lock

  • 1
  • 2

Brand Name : RESKY

Model Number : LP906090

Certification : CE, RoHS, MSDS, Un38.3,IEC62133,ect

Place of Origin : China

MOQ : 10pcs

Price : Negotiable

Payment Terms : T/T,Western Union

Supply Ability : 10000PCS/Day

Delivery Time : 7-10days

Packaging Details : Exporting standard package

Model NO. : LP906090

Nominal Capacity : 6000mAh

Continuous Discharging Current : 0.2c

Max Discharging Current : 0.5c

Weight : 85g

MOQ : 10PCS

Cycle Life : 500cycles

Specification : 9*60*90mm

HS Code : 8507600090

Contact Now

Product Description

Power Lipo Battery 906090 3.7v 6000mAh 22.2wh Rechargeable Lithium Ion Polymer Battery For Smart Lock

NO. Items Specifications
1 batteries 3.7v 6000mah lipo battery
2 Charge voltage 4.2V
3 Nominal voltage 3.7V
4 Nominal capacity 6000mAh 0.2C Discharge
5 Charge current
 Standard Charging:0.5C
Rapid charge: 1.0C
6 Standard Charging method 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7 Charging time
 Standard Charging:2.75hours(Ref.)
Rapid charge: 2hours(Ref.)
8 Max.charge current 1.0C
9 Max.discharge current 1.0C
10 Discharge cut-off voltage 2.5V0.25V(0.2C)
11 Operating temperature Charging: 0 °C ~45 °C
Discharging:0 °C ~45 °C
12 Storage temperature -10°C~ +45 °C
13 Dimension Length:90±2mm (not including tabs)
Width:60±0.5mm
Thickness:9±0.5mm
14 Drop Test The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15 cycle time ≥500times


Advantage:



Extremely Compact Size and Lightweight Design


The ultra-compact battery measures 90mm × 60mm × 9mm, a mere 48.6cm³, yet packs 6000mAh of capacity. Its volumetric energy density reaches 457Wh/L (3.7V × 6Ah/0.0486L), far exceeding that of cylindrical battery packs of the same capacity. This makes it highly competitive in weight-sensitive applications such as drones and portable electronic devices.


High Safety and Stability


The battery is encapsulated in a soft aluminum-plastic film package with fireproof properties. The solid/gel electrolyte inside eliminates the risk of liquid electrolyte leakage.


Flexible Customization and High Adaptability


The ability to design any shape, thanks to a lamination process, allows for customization into irregular shapes such as L-shaped, curved, and stepped, precisely fitting within the device's interior.


High-Rate Discharge and Long Life


The battery boasts a long cycle life exceeding 300 cycles at 0.5C discharge, with a capacity retention rate of ≥80%, meeting the needs of frequent daily use.


Application:


Consumer Electronics and Smart Home


Power Banks:


Smart Locks:


Portable Projectors:


Drones and Model Aircraft:


Camping Lanterns and Emergency Equipment:


Medical and Health Monitoring:


Portable Monitors:


Beauty Devices: High-Rate Discharge and High-Frequency Vibration Support


Picures:

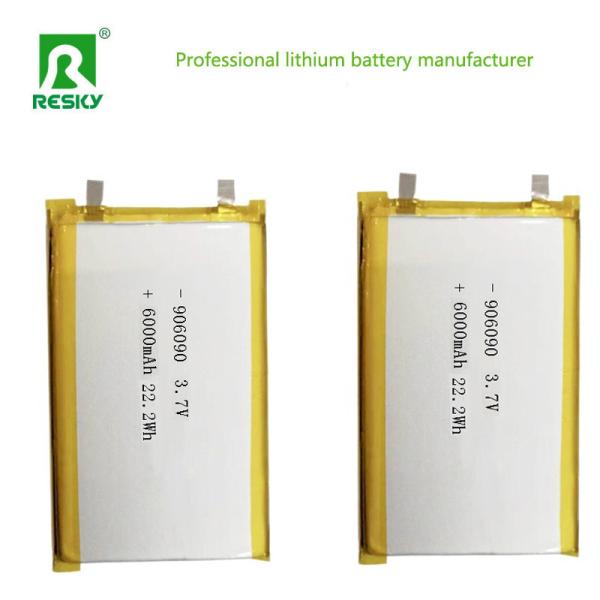

Power Lipo Battery 906090 3.7v 6000mAh 22.2wh Rechargeable Lithium Ion Polymer Battery For Smart Lock

Power Lipo Battery 906090 3.7v 6000mAh 22.2wh Rechargeable Lithium Ion Polymer Battery For Smart Lock

Power Lipo Battery 906090 3.7v 6000mAh 22.2wh Rechargeable Lithium Ion Polymer Battery For Smart Lock

Power Lipo Battery 906090 3.7v 6000mAh 22.2wh Rechargeable Lithium Ion Polymer Battery For Smart Lock

Power Lipo Battery 906090 3.7v 6000mAh 22.2wh Rechargeable Lithium Ion Polymer Battery For Smart Lock
