Brand Name : RESKY
Model Number : LP801350
Certification : CE, RoHS, MSDS,Un38.3,IEC62133
Place of Origin : China
MOQ : 100pcs
Price : Negotiable
Payment Terms : Western Union,T/T
Supply Ability : 50000pcs/day
Delivery Time : 7-10days
Packaging Details : Blister tray package with paper box
Model NO. : LP801350
Electrolyte : Li(Nicomn)O2
Rechargeable : Chargeable
Nominal Capacity : 500mAh
Charging Current : 0.2c
Continuous Discharging Current : 0.5c
Max Discharging Current : 1c
Weight : 7g
Certification available : CE, ROHS, IEC62133-2, UN38.3, MSDS, ect
Warranty : 12months
| Item | Specifications |
|---|---|
| Batteries | 3.7V 500mAh LiPo battery |
| Charge voltage | 4.2V |
| Nominal voltage | 3.7V |
| Nominal capacity | 500mAh @ 0.2C Discharge |
| Charge current | Standard Charging: 0.2C Rapid charge: 1.0C |
| Standard Charging method | 0.5C CC charge to 4.2V, then CV charge till current ≤0.05C |
| Charging time | Standard: 2.75 hours Rapid charge: 2 hours |
| Max. charge current | 0.5C |
| Max. discharge current | 1.0C |
| Discharge cut-off voltage | 2.5V±0.25V (0.2C) |
| Operating temperature | Charging: 0°C~45°C Discharging: 0°C~45°C |
| Storage temperature | -10°C~+45°C |
| Dimension | Length: 50±0.5mm Width: 13±0.5mm Thickness: 8±0.2mm |
| Drop Test | Dropped from 1m height twice onto concrete ground (no fire, no leakage) |
| Cycle time | ≥500 times |
|
|

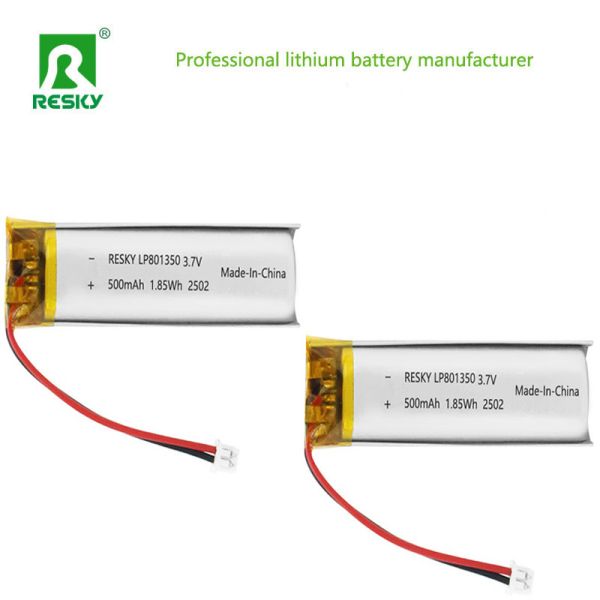

Replacement 3.7V 500mAh Lithium Polymer Battery for Smart Bracelets with CE ROHS Certification Images |
